Teltonika FMU130 $114
Quantity - +
Total: $

Description

FMU130 is small and professional real-time tracking terminal with GNSS and 3G/GSM connectivity and backup battery. Device equipped with GNSS/Bluetooth and 3G modules, internal GNSS, 3G antennas, configurable digital, analogue inputs and digital outputs, negative input, impulse inputs. It is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on.

Integrated 3G/GSM module

It makes this device usable worldwide, as there are countries which have only 3G network. User can choose if device will work only in GSM network, or will it prefer 3G network and switch to GSM only when 3G is absent.

Various vehicle CAN data

With additional Teltonika Vehicle CAN adapter you will be able to acquire CAN data from any kind of transport such as light vehicles, trucks, buses, agriculture transport, and special transport. Supported vehicles list contains more than 1800 models.

1-Wire ®

1-Wire ® protocol support enables you to identify up to 500 authorized drivers and connect temperature sensor. According to iButton or RFID ID you can prevent unauthorized access to your fleet and temperature sensor allows you to monitor your cargo.

Internal battery

Feel safe when vehicle is monitored by device with internal battery. When vehicle battery is disconnected, device still remains online and sends data to server

Trip detection

Easy trip start and stop detection gives you possibility to have the report with correct time, location and driven distance for each trip.

Internal GNSS and 3G/GSM antennas

With integrated GNSS and 3G/GSM antennas, your fleet management experience will be enhanced. High sensitivity, fast cold start and almost instant hot start ensures that Your fleet will be tracked precisely. Moreover installation will be fast and easy.

Features

  • Easy to mount case
  • Real-time tracking
  • Smart data acquisition - based on time, distance, angle, ignition, speed delta and I/O events allow to have precise online track
  • Sending acquired data via 3G or GPRS (TCP/IP and UDP/IP protocols)
  • Smart algorithm of 3G or GPRS connections (GPRS traffic saving)
  • Operating in roaming networks by preferred GSM providers list
  • Events from I/O elements detection and sending via 3g, GPRS or SMS
  • Scheduled 24 coordinates SMS sending when GPRS not available
  • NTP time synchronization (in places where GNSS is not available)
  • CAN data acquisition from any kind of transport such as light vehicles, trucks, buses, agriculture and special transport with Teltonika Vehicle CAN Adapter
  • 5 geofence zones (rectangular or circle)
  • Auto Geofencing crested for car towing detection and car theft prevention
  • DeepSleep mode (less than 4 mA power consumption)
  • Firmware and configuration update via 3G or GPRS (FOTA)
  • 3 operational modes (Home, Roaming,Unknown) based on operator
  • Integrated scenarios:
    • Over speeding to secure driver and prevent penalties
    • Trip start and end detection
    • Authorized driving (1-Wire® iButton® ID keys up to 500 iButtons® keys) use to prevent stealing or indicate drivers
    • Immobilizer function
    • Vehicle Idle detection
    • GSM Anti-jamming detection

Specifications

MODULE
Name Quectel UC15-A/UC15-T or Quectel UG96, Teltonika TM2500
Technology 3G(UMTS/HSPA)/2G(GSM/GPRS)/GNSS/BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, QZSS
Protocol compatible NMEA, GGA, GGL, GSA, GSV, RMC, VTG
Receiver Tracking: 33/99 acquisition channels
Tracking sensitivity -165 dBM
Accuracy < 3 m
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
CELLULAR
Technology UMTS/HSPA
2G bands UC15-A: B5/B8/B3/B2
UC15-T: B5/B8/B3/B2
UG96: B5/B8/B3/B2
3G bands UC15-A: B5/B2
UC15-T: B5/B1
UG96: B6/B5/B8/B2/B1
Data transfer UC15:HSDPA: Max. 3.6Mbps (DL)
UMTS: Max. 384Kbps (DL)/Max.384Kbps (UL)
GPRS: Max. 85.6Kbps (DL)/Max. 85.6Kbps (UL)
UG96:HSUPA: Max. 5.76Mbps
UMTS: Max. 384Kbps (DL)/Max.384Kbps (UL)
GPRS: Max. 107Kbps (DL)/Max.85.6Kbps (UL)
Data support SMS (text/data)
POWER
Input voltage range 10 - 30 V DC with overvoltage protection
Internal Back-up battery 170 mAh Li-Ion, 3.7 V battery (0.63 Wh)
BLUETOOTH
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
PHYSICAL SPECIFICATION
Dimensions 65 x 56,6 x 20,6 mm (L x W x H)
Weight 55 g
OPERATING ENVIRONMENT
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
INTERFACE
Digital Inputs 3
Negative Inputs 1 (Digital Input 2)
Impulse Inputs 2 (Digital Input 1, Digital Input 2)
Digital Outputs 3
Analog Inputs 2
CAN Adapter inputs 1
1-Wire 1
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM Micro-SIM + eSIM
Memory 128MB internal flash memory
FEATURES
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GNSS, NITZ, NTP
Fuel monitoring LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)

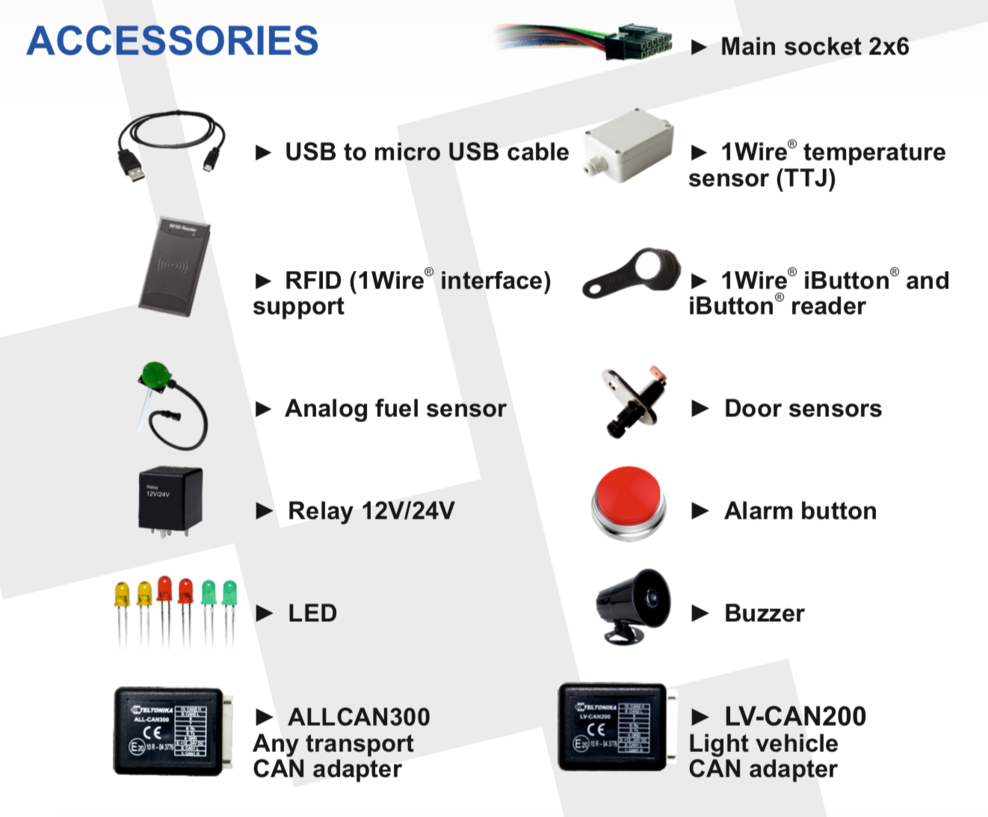

Accessories
