Vehicle GPS TrackerCoban 103
- 2 years warranty, no contracts
This product is currently unavailable.
Description
GPS103 is a new Vehicle Tracker based on the GSM/GPRS network and GPS satellite positioning system, which set multiple function of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. Objects can be tracked and monitored with GPSWOX Real Time Tracking System on your Computer, Mobile or Tablet (Apple, Android, Windows)
Specification
| Content | Specification |
|---|---|
| Dimensions | 83mm x 54mm x 26mm |
| Weight | 115g |
| Network | GSM/GPRS |
| Band | 850/1800/1900Mhz or 900/1800/1900Mhz |
| GPS chip | SIRF3 chip |
| GSM/GPRS | Simcom300d or Simcom340d |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| Time to first fix | Cold status 45s |
| Warm status 35s | |
| Hot status 1s | |
| Voltage of car power system | 12V input |
| Car charger output | Cut off the power and the oil system and control the power system: 0V |
| Car power input | Door: 0V (Negative trigger) or 12V (positive trigger) |
| ACC: 12V | |
| Sensor: 0V | |
| SOS button: 0V | |
| Battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +55°C |
| Humidity | 5%-95% non-condensing |
This GPS tracker needs to use a Sim card for 850/900/1800/1900MHZ, does not support 3G, 4G sim card.

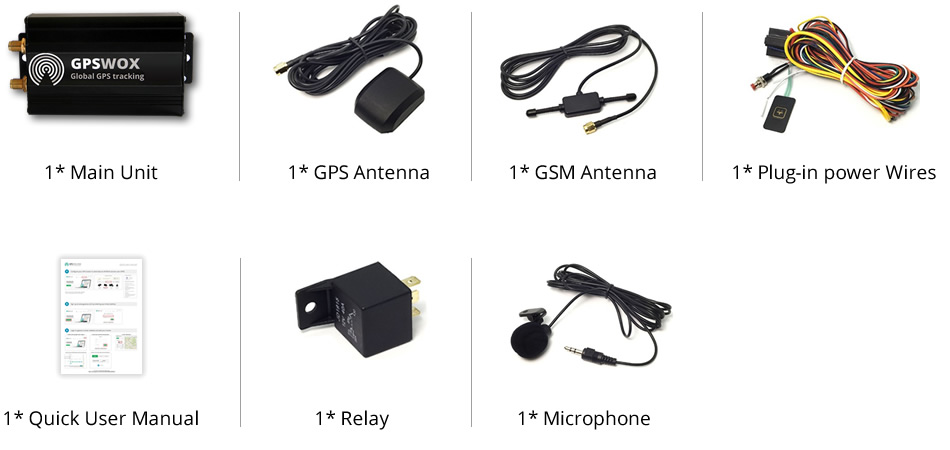

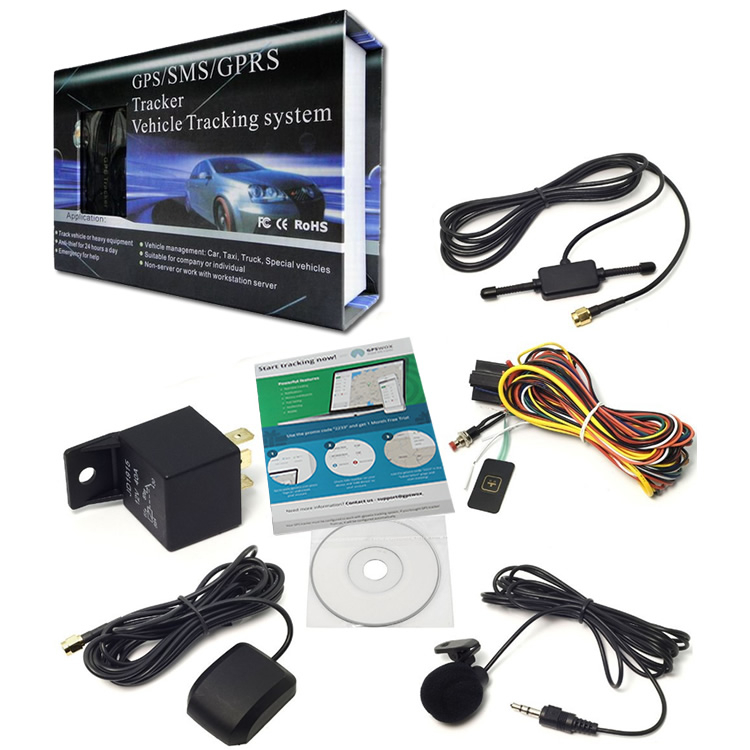

Package

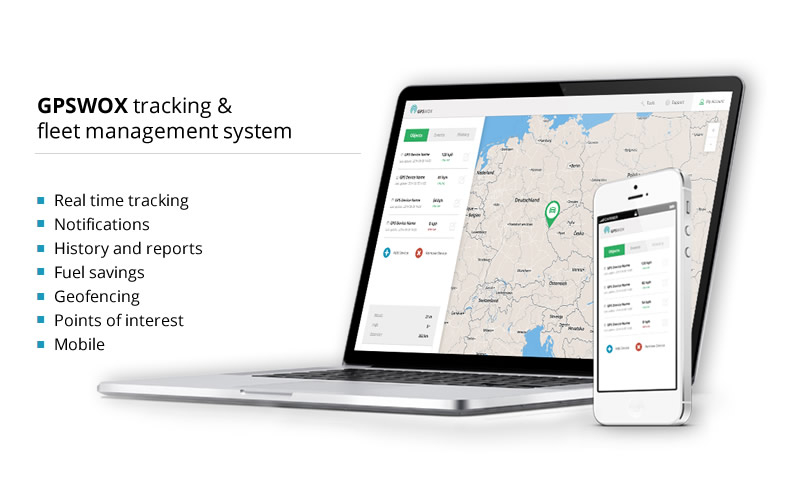

Tracking System
Shipping
Cost
Worldwide postage and packaging is FREE.
Order processing
All orders are dispatched within 2 business days after funds are cleared.
Shipping times
- USA/Canada
- 14 - 20 working days
- Europe
- 4 - 15 working days
- Asia
- 14 - 30 working days
- Australia
- 20 - 30 working days
Order tracking
All orders are shipped by Priority International Airmail. Tracking information is provided to all buyers after shipping.
Buyers can track the order once it ships from our warehouse. You will receive a tracking number and links to our local post office page. Once the item reaches your local post office, you can also track it there.
Please note: an order cannot be tracked while it is in transit, only after it leaves our warehouse and once it reaches your local post office.
Express delivery
If you want to receive your order within 2-5 working days we can ship it by DHL, but the shipping cost is the buyer's responsibility.
Shipping policy
GPSWOX does not take any responsibility for customs delays or taxes.
Returns
If the item is broken or not working properly, you have up to 7 working days to contact us (in other instances the money will be not refunded). If you would like to return an item, please send us email to sales@gpswox.com and we will respond with the return address and an identifying number for you to enclose with the returned item.
Please note: If you do not send email within 7 working days after your receive order, we will not be able to process your return.
Refund
We will process your refund through PayPal after receiving the items providing they are unused and in a saleable condition.
Return Shipping
Return shipping is paid by the buyer, unless the received item is defective or not working.
Please note: buyer must send order back to GPSWOX via a postal service, which have tracking function.
Returns Condition
All returned items will be subject to inspection. Full refund is only processed for buyers, which return items unused and returned in their original packaging. Otherwise, if return is received in not saleable condition and packaging will be broken, you will be charged 20% of the retail price of the item.
User Manual
