Teltonika SIMPLE-CAN

Warranty-friendly solution that connects into the CAN Bus system

Teltonika SIMPLE-CAN
Teltonika SIMPLE-CAN
Teltonika SIMPLE-CAN
Teltonika SIMPLE-CAN
Teltonika SIMPLE-CAN
  • Free worldwide shipping
  • No contracts
  • 2 years warranty
Teltonika SIMPLE-CAN $49
Quantity - +
Total: $

Description

SUPPORTED DEVICES

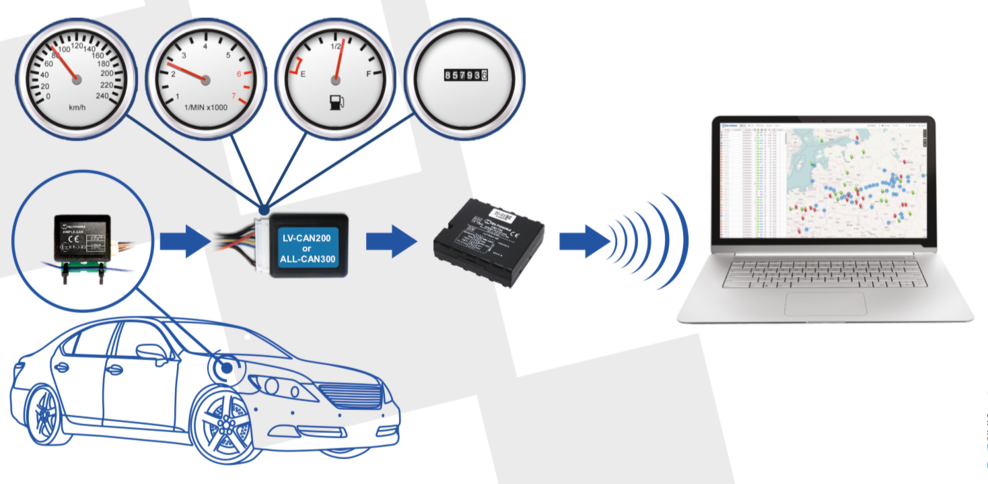

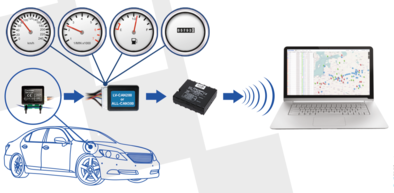

To achieve contactless data reading, SIMPLE-CAN adapter should be used in combination with LV-CAN200, ALL-CAN300 or FM6320/FMB630 to read J1939 CAN data.

Supported devices
Benefits
BENEFITS OF SIMPLE-CAN

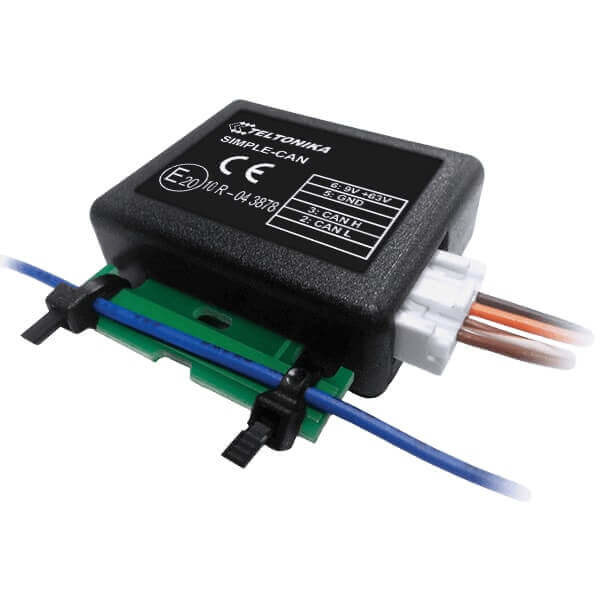

Contactless connection to the CAN bus of the vehicle! It reads can bus data through the isolation of wires without damaging them and forwards signals to tracking device.

Specifications

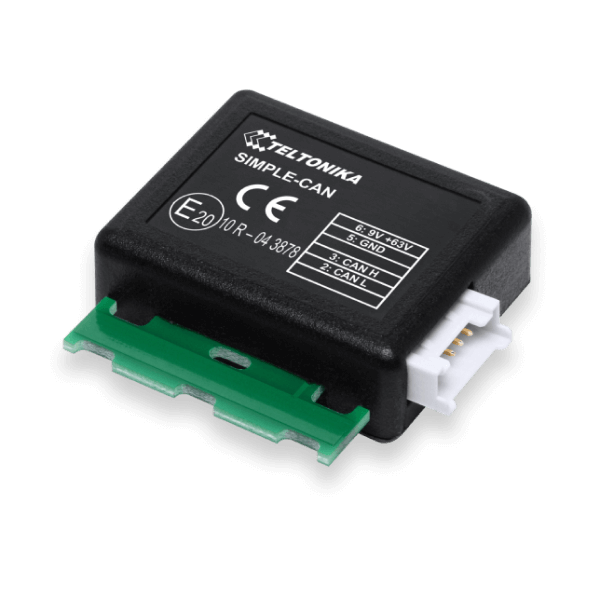

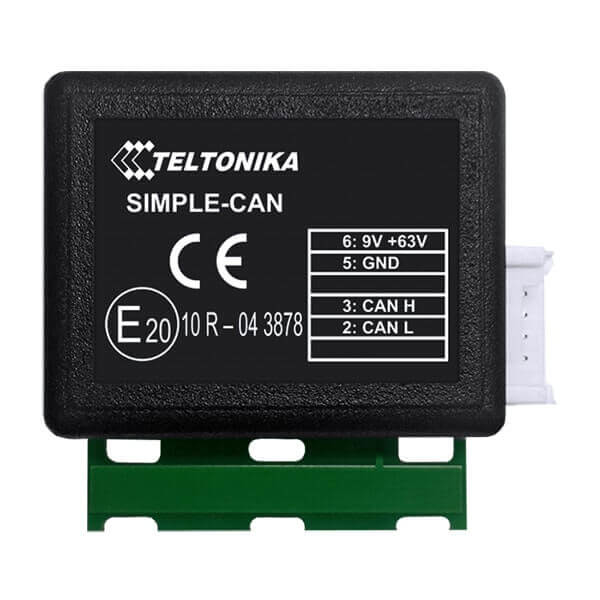

SIMPLE-CAN is contactless reader used to read vehicle CAN data with LV-CAN200, ALL-CAN300.

  • SIMPLE-CAN collects vehicle data from CAN bus without damaging the wires
  • Powered from on-board power source
  • Reads the signals through the isolation of CAN bus wires
  • Easy to install and operate
  • LED indication for working modes
  • SIMPLE-CAN can be used in conjunction with the LV-CAN200 or ALL-CAN300
  • SIMPLE-CAN can be used with FM5300 and FM6320 to read FMS J1939 data
  • If LV-CAN200 or ALL-CAN300 connection requires two CAN lines to get all data, then you need two SIMPLE-CAN readers
  • Vehicle manufacturer's warranty is not violated!

Technical details

  • Power supply voltage 9-63 V
  • Power supply current:
    Mode 12V 24V
    Active 8.3mA 4.3mA
    Standby 1.6mA 0.91mA
  • CAN-BUS speeds from 33,33 to 500 kb/s
  • Automatically sets CAN Low, CAN High polarity
  • Automatically adjusts signal level and speed
