Vehicle GPS Tracker
Ulbotech T356 WiFi (OBDII)

Vehicle GPS Tracker  Ulbotech T356 WiFi (OBDII)
Vehicle GPS Tracker  Ulbotech T356 WiFi (OBDII)
Vehicle GPS Tracker  Ulbotech T356 WiFi (OBDII)
Vehicle GPS Tracker  Ulbotech T356 WiFi (OBDII)
Vehicle GPS Tracker  Ulbotech T356 WiFi (OBDII)
Vehicle GPS Tracker  Ulbotech T356 WiFi (OBDII)
Vehicle GPS Tracker  Ulbotech T356 WiFi (OBDII)
$69.00 $75.90
-10%
  • Use : Car, Van, Truck

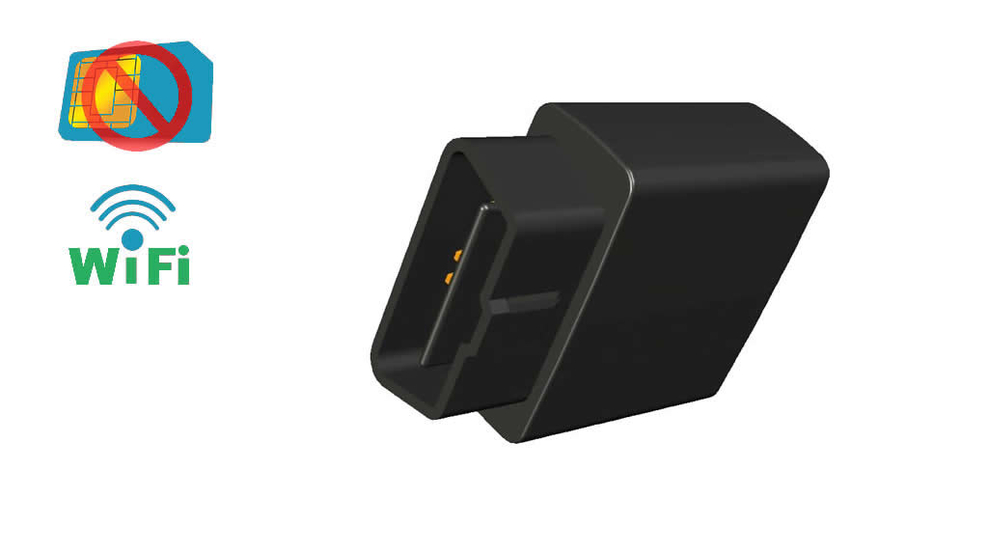

  • Connection: Wi-Fi (no SIM)
  • Tracking system : GPSWOX
  • Availability : In stock
  • Shipping : Worldwide (Free)
  • Delivery time : Check below
Min. order 20 units. Contact us for more info.


Description

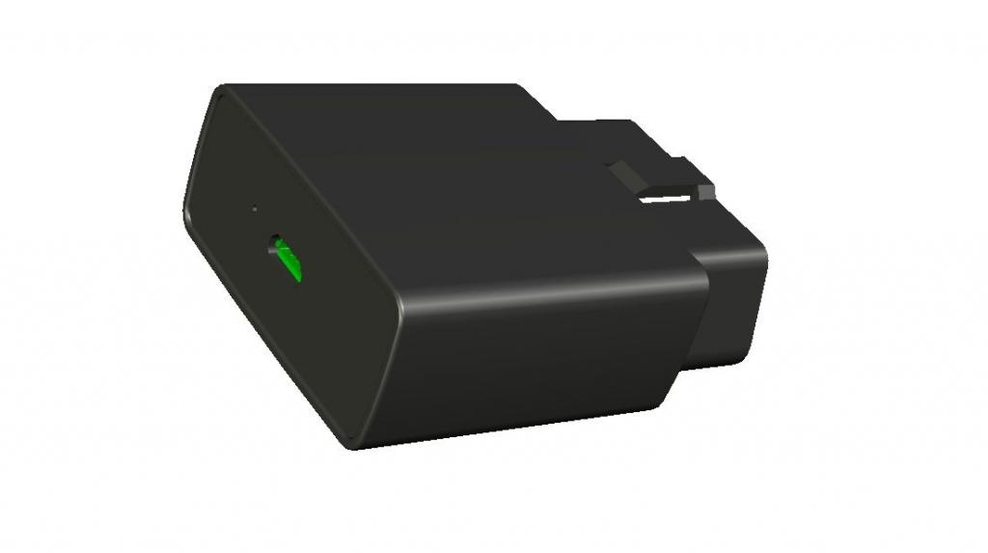

T356 is a WIFI, 0 use-cost OBD II GPS tracking device. It's the built-in high capacity flash for two weeks data storage. The built-in WIFI functionality supports the device to synchronized the all full storage data to the server within quite a short time. T356 can be preset more than 1600 WIFI AP information to support the device sending the data to the server more easy and quickly. Just like during the vehicle refueling, the device could be upload the data to the server via the preset AP. The internal GPS and OBD functions support to real-time recording and analyzing GPS and OBD data, including mileage and fuel consumption data statistics. It's integrated the 3-axis accelerometer can be real-time monitored 8 kinds of bad driving behavior. It's built a power-cut output and a configurable input circuit to facilitate the device's extension functionality.


Features

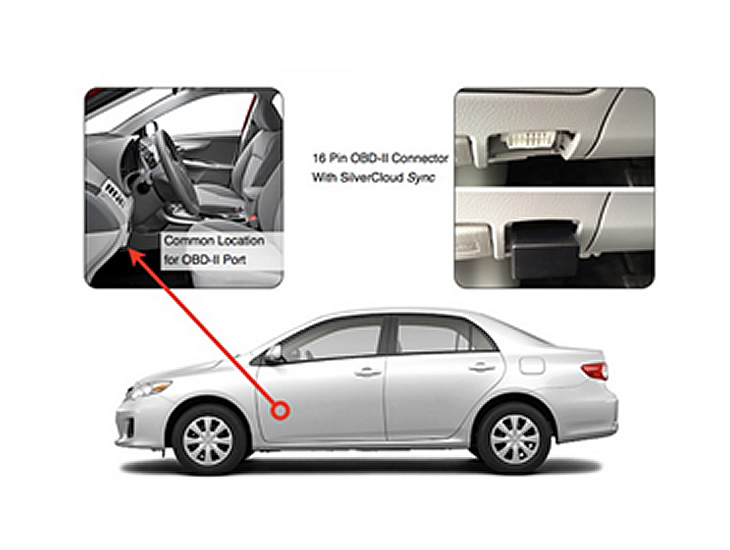

  • ​OBD connectivity, simple to install, easy to use.
  • Supports all OBDII protocols.
  • Support SAE J1939 CANBUS.
  • Support SAE J1708/J1587 protocol.
  • Build in WIFI support 802.11 b/g/n.
  • Optional Bluetooth low energy(BLE) function.
  • U-blox NEO-6M GPS module with A-GPS.
  • Internal WIFI, BLE and GPS antenna.
  • Internal Immobilizer for anti-theft.
  • Configurable input for analog, ACC or SOS etc.
  • Internal 3-axis accelerometer.
  • Build buzzer for alert.
  • 8 types driver behavior detect.
  • Tracking by time, distance, course and status.
  • Geo-fence(Circle, Rectangular and Polygon).
  • FOTA(Firmware updating via  WIFI).

Specifications

WIFI
Protocol 802.11 b/g/n
Sensitivity -98 dBm
Security Supports WPA/WPA2 and WPS modes
Mode Station & Soft-AP
Antenna Internal only

GPS
GPS Chipset u-blox 6m GPS module
Sensitivity Autonomous: -147 dBm
Hot start: -160 dBm
Tracking: -162 dBm
Position Accuracy Autonomous: < 3m
SBAS: 2.0m
TTFF(Open sky and AGPS) Cold start: 25s average
Warm start: < 25s
Hot start: < 1s

Interfaces
OBD Port J1850 PWM
J1850 VPW
ISO 9141-2
ISO14230(KWP200)
ISO15765-4(CAN)
WIFI Antenna Internal only
GPS Antenna Internal only(25mm*25mm ceramic)
Indicator LED WIFI, GPS, OBD and Bluetooth
USB Mirco USB port for configrations, upgrading and debugging
Bluetooth Bluetooth 4.0 low energy
I/O 1 digital output for engine cut,1 configurable input

General
Dimensions 50mm(L)*50mm(W)*23mm(H), not include J1962 connector
Weight About 50g
Backup Battery Li-Polymer 3.7V 180 mAh
Power consumption 70mA(Active),10mA(Sleep),Max.<250mA
Operating Voltage 8V to 32V DC
Operating Temperature -30℃ ~ +80℃ (without battery)
-40℃ ~ +85℃ for storage (without battery)
Memory 16M(about 22000 records max.)
Sensor 3-axes ±2g/±4g/±8g/±16g accelerometer
Vehicle battery voltage
Back battery voltage
Temperature sensor
Geo-Fence 5 Geo-Fences(Circlar,Rectangular and up to 32 points Polygon)

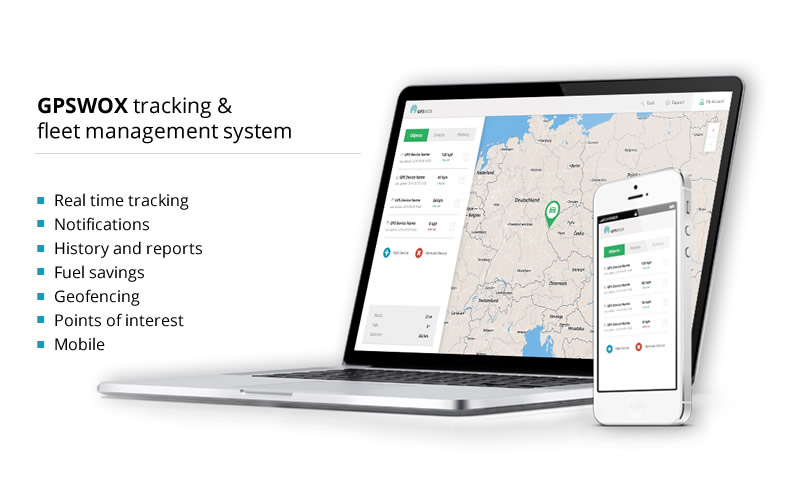

Tracking System

Real-Time Tracking

View the location of objects in real time, on the map of your choice: OSM, Google, Satellite etc. This service can be used at any time of the day from any computer or smartphone connected to the Internet. Furthermore, you will be able to view additional information about the object: exact address,  travel speed, petrol consumption etc.

Notifications

Get instant alerts about your defined events: when object enters or exits geo-zone, speeding, theft, stopovers, SOS alarms etc. Via system pop-up window, via email or in the smartphone app.

History and Reports

Preview or download reports in different formats (XLS, PDF, CSV, TXT). Reports can include various information: driving hours, stopovers, distance traveled, fuel consumption etc. by date and GPS tracker name.  Detailed and group reports may be also available.

Fuel Savings

Check tank fuel level and fuel consumption along the route. Aggressive driving: speeding, rapid acceleration and braking, directly influencing fuel consumption. Improving driving behavior can cut your fuel costs significantly. Reductions of 5 to 15% have been reported by many companies. Furthermore, fuel consumption control is a great preventive measure against theft and fraud.

Geofencing

Geofence feature allows you to set up geographic boundaries around areas that have specific interest for you. And then receive automated alerts whenever object enters or leaves those boundaries.

POI & Tools

With POI (Points of Interest) you can add markers at the locations that might be important to you: gas station, a hotel, a restaurant, a shopping mall etc. Also, you can name the place and add description. Furthermore, you can use tools for calculating distances between places on the map and etc.

Mobile

Easily track and access all GPSWOX features on you mobile or tablet.  Furthermore, you can download for free ‘Mobile GPS Tracker’ app on your iPhone, Samsung or Lumia and transform your device into GPS tracker.

Optional accessories

GPSWOX system supports various accessories. With driver identification functionality you can keep track of driver assignments. With camera and microphone installed in the cabin, you can get live video and audio stream to your computer. With temperature and fuel sensors control your cargo safely and profitably.
