Vehicle GPS Tracker

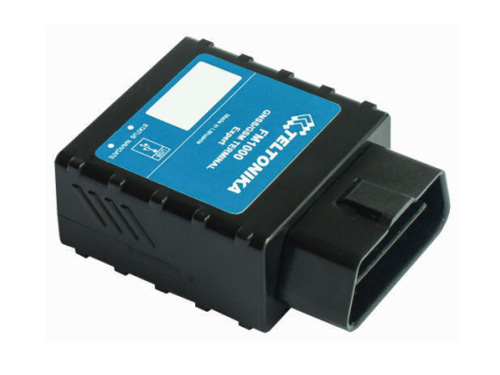

Teltonika FM1000 (OBDII)

Vehicle GPS Tracker  Teltonika FM1000 (OBDII)
Vehicle GPS Tracker  Teltonika FM1000 (OBDII)
Vehicle GPS Tracker  Teltonika FM1000 (OBDII)
Vehicle GPS Tracker  Teltonika FM1000 (OBDII)
Vehicle GPS Tracker  Teltonika FM1000 (OBDII)
Vehicle GPS Tracker  Teltonika FM1000 (OBDII)
Vehicle GPS Tracker  Teltonika FM1000 (OBDII)
$108.00 $120.00
-10%
  • Use : Car, Van, Truck
  • Tracking system : GPSWOX
  • Availability : Out of stock
  • Shipping : Worldwide (Free)
  • Delivery time : Check below
Out of stock.


Description

Teltonika FM1000 is a new Vehicle OBD Tracker based on the GSM/GPRS network and GPS satellite positioning system, which set multiple function of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. Objects can be tracked and monitored with GPSWOX Real Time Tracking System on your Computer, Mobile or Tablet (Apple, Android, Windows)

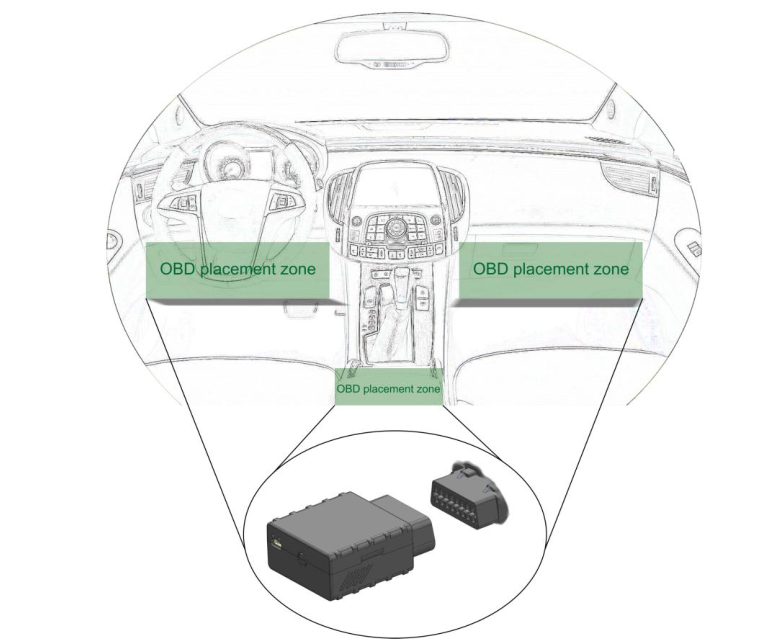

FM1000 GPS tracker can be plugged into the vehicle with an OBD connector, but does not provide the OBD detection function. With the standard OBD II plug, tracker can be easily installed (takes less than 5min.) It is a perfect choice for all cars.


Specifications

FM1000

Easy Plug & Play vehicle tracker

  • Car tracking
  • Configurable device behaviour
    • To customize the data acquire & sending for different application and GSM costs saving
  • Precise online tracking
    • Under time, distance and corner alteration
  • Integrated scenarios
    • Over speeding
    • Trip start and end detection
  • Integrated back-up battery
  • Remote logs reading
    • For remote issue solving with manufacturer
  • Low energy consumption in deep sleep mode

FM1000 is an easy plug and track realtime tracking terminal with GPS/GLONASS and  GSM connectivity,  which is  able  to  collect  device   coordinates  and  other  useful data to transfer them via GSM network to server .  This device is perfectly suitable for  applications  where  location&nbnbsp; acquirement  of  remote  objects  is  needed:  fleet management,  car  rental  companies,  taxi  companies,  personal  cars  and  so  on..

Application:

  • Track and trace
  • Road assistance
  • Personal car's and van tracking
  • Fleet management
  • Taxi companies
  • Car rental companies

TECHNICAL DETAILS:

GSM:

  • Quad-band 900/1800 MHz; 850/1900 MHz
  • GPRS class 10 (up to 85,6 kbps);
  • SMS (text/data)

GPS/GLONASS:

  • NMEA protocol compatible. Messages: GGA, GGL, GSA, GSV, RMC, VTG, TXT
  • 32 channel GPS/GLONASS receiver
  • Up to -161 dBm sensitivity

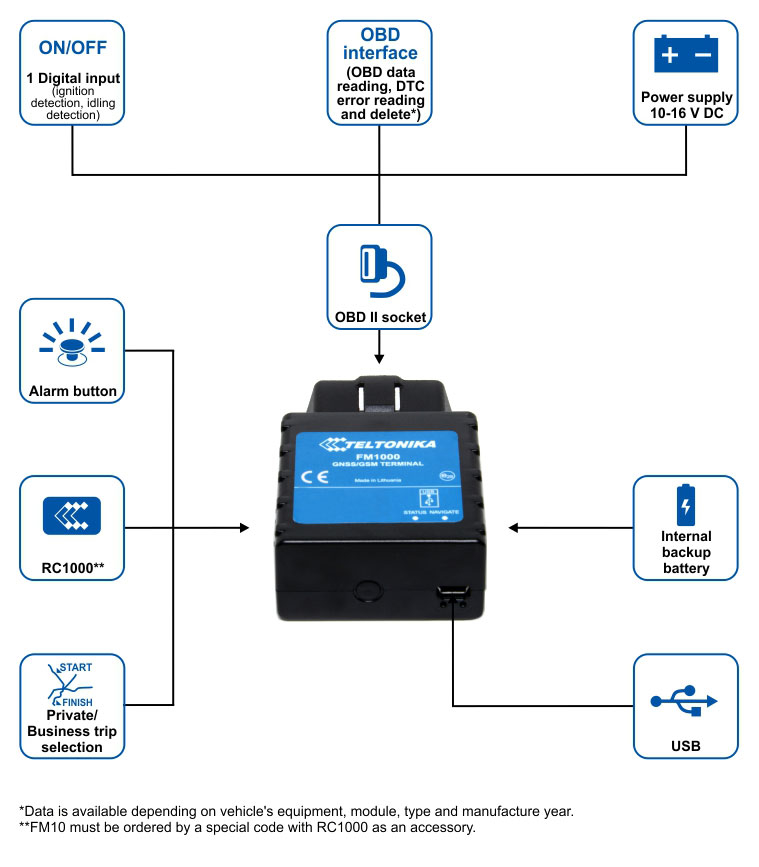

Interface:

  • 1 Digital Input Reserved for Ignition Status Monitoring (depends on vehicle type)
  • Accelerometer
  • Power supply (+10...+16) VDC
  • Integrated back-up battery (optional)
  • Internal High  Gain GSM antenna
  • Internal High  Gain GPS/GLONASS antenna
  • Dimensions: L(50,7mm)xW(49,6mm)xH(25mm)
  • 2 Status LEDs
  • USB Port
  • Configuration and firmware upload (FOTA and via USB cable)

Features:

  • Plug and Track

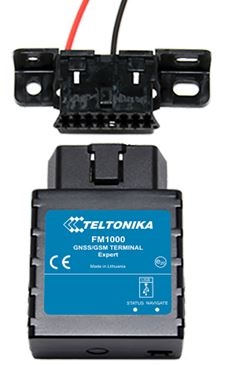

  • Small and easy to mount case – directly to car OBDII connector
  • Internal GSM antenna and Internal GPS/GLONASS antenna allow mount FM1010 much easier
  • Real Time tracking
  • Smart algorithm of data acquisition (time, distance, angle, ignition and event based)
  • Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
  • Smart algorithm of GPRS connections (GPRS traffic saving)
  • Operating in roaming networks (preferred GSM providers list)
  • Events on I/O detection and sending via GPRS or SMS.
  • Scheduled 24 coordinates SMS sending when GPRS not available
  • 5 geofence zones (rectangular or circle)
    • Auto  Geofencing  crested  for  car  towing  detection  and  car  theft  prevention
  • Deep Sleep mode (less than 2  mA power  consumption)
  • FOTA (firmware updating via GPRS)
  • 3  operational  modes (Home,  Roaming,  Unknown)  based  on  operator
  • Integrated  scenarios:
    • Over  speeding  to  secure  driver  and  prevent  penalties
    • Trip  start  and  end  detection
  • FM1000  supports  a  remote  logs  reading
    • FM1000  supports  remote  diagnostic  logs  functionality  using  GPRS.  Possible  issues  resolving  becomes faster .  Manufacturer  can  read  logs  remotely  using  SMS/GPRS  to  diagnose  the  FM1000  and  timely respond  to  the  fault.

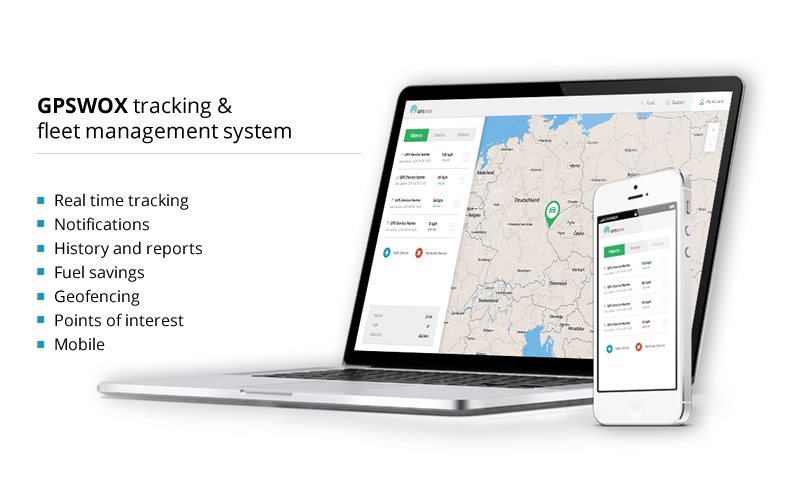

Tracking System

Real-Time Tracking

View the location of objects in real time, on the map of your choice: OSM, Google, Satellite etc. This service can be used at any time of the day from any computer or smartphone connected to the Internet. Furthermore, you will be able to view additional information about the object: exact address,  travel speed, petrol consumption etc.

Notifications

Get instant alerts about your defined events: when object enters or exits geo-zone, speeding, theft, stopovers, SOS alarms etc. Via system pop-up window, via email or in the smartphone app.

History and Reports

Preview or download reports in different formats (XLS, PDF, CSV, TXT). Reports can include various information: driving hours, stopovers, distance traveled, fuel consumption etc. by date and GPS tracker name.  Detailed and group reports may be also available.

Fuel Savings

Check tank fuel level and fuel consumption along the route. Aggressive driving: speeding, rapid acceleration and braking, directly influencing fuel consumption. Improving driving behavior can cut your fuel costs significantly. Reductions of 5 to 15% have been reported by many companies. Furthermore, fuel consumption control is a great preventive measure against theft and fraud.

Geofencing

Geofence feature allows you to set up geographic boundaries around areas that have specific interest for you. And then receive automated alerts whenever object enters or leaves those boundaries.

POI & Tools

With POI (Points of Interest) you can add markers at the locations that might be important to you: gas station, a hotel, a restaurant, a shopping mall etc. Also, you can name the place and add description. Furthermore, you can use tools for calculating distances between places on the map and etc.

Mobile

Easily track and access all GPSWOX features on you mobile or tablet.  Furthermore, you can download for free ‘Mobile GPS Tracker’ app on your iPhone, Samsung or Lumia and transform your device into GPS tracker.

Optional accessories

GPSWOX system supports various accessories. With driver identification functionality you can keep track of driver assignments. With camera and microphone installed in the cabin, you can get live video and audio stream to your computer. With temperature and fuel sensors control your cargo safely and profitably.

Shipping

Cost

Worldwide postage and packaging is FREE.

Order Processing

All orders are dispatched within 24 hours after funds are cleared.

Order tracking

All orders are shipped by Priority International Airmail. Tracking information is provided to all buyers after shipping.

Buyer is able to track order when it is shipped from our warehouse. Tracking number will be provided to you, and order can be tracked in our local Post office web page (all links will be given after shipping). When item will reach your local post office, you, also, be able to track item, in your local post office web page.

Please Note: It is not able to track order, when it is in transit. Only when order leave our warehouse and reach your local post office.

Shipping Times

Europe 4 - 15 working days,

Russia 10 - 20 working days,

Asia 14 - 30 working days,

USA/Canada 14 - 20 working days,

Australia 20 - 30 working days.

Please Note: If you want to receive your order within 2-5 working days, we are able to ship your order by DHL, nevertheless, it is buyer responsibility to cover shipping cost.

Shipping Policy

GPSWOX do not take any responsibilities for custom delay or tax.

Returns

Please note: If you do not send email within 7 working days after your receive order, we will not be able to process your return.

We will process your refund through PayPal after receiving the items providing they are unused and in a saleable condition.

Return shipping is paid by the buyer, unless the received item is defective or not working.

Returns Condition

All returned items will be subject to inspection. Full refund is only processed for buyers, which return items unused and returned in their original packaging. Otherwise, if return is received in not saleable condition and packaging will be broken, you will be charged 20% of the retail price of the item.

User Manual
