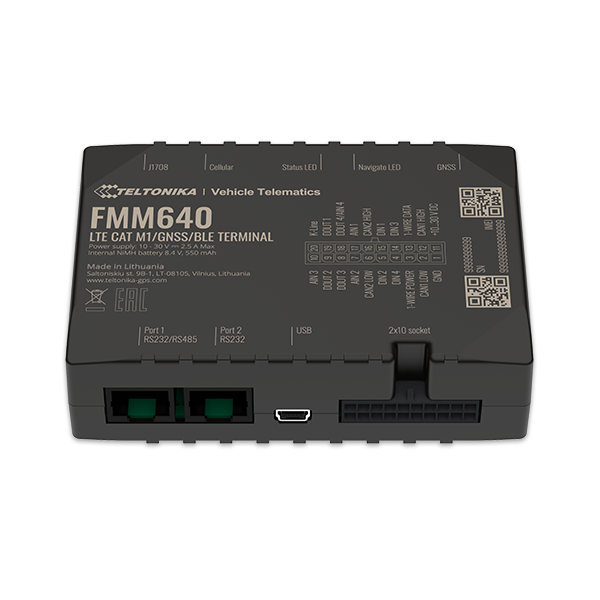

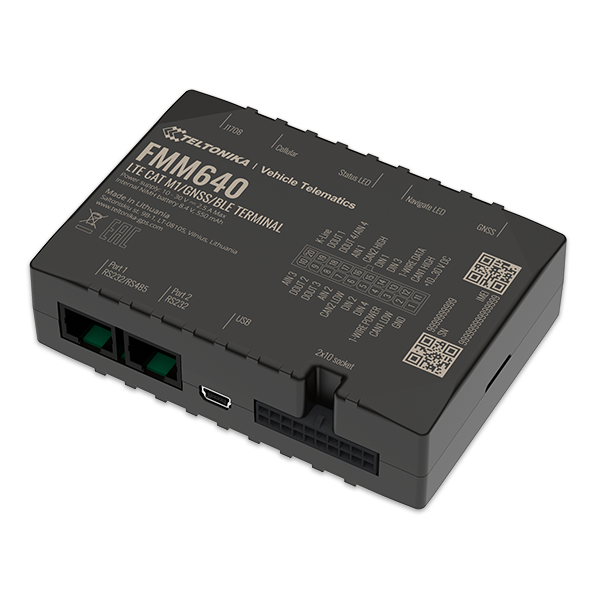

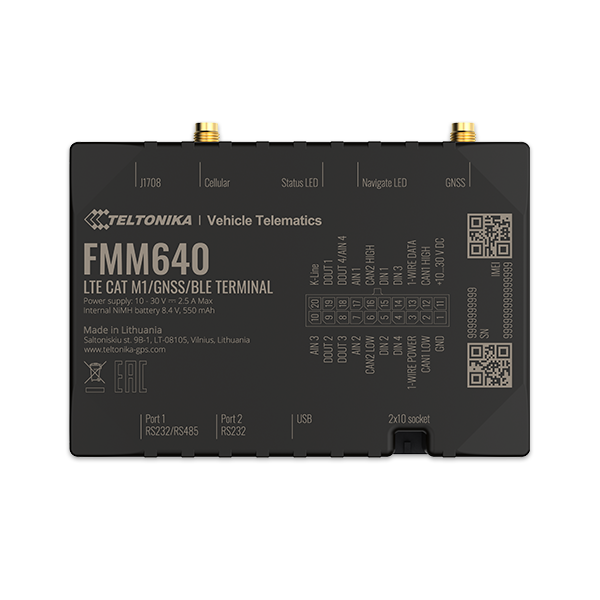

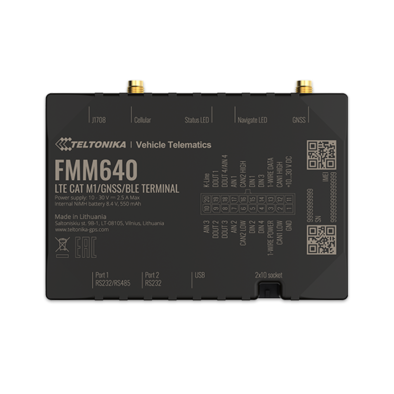

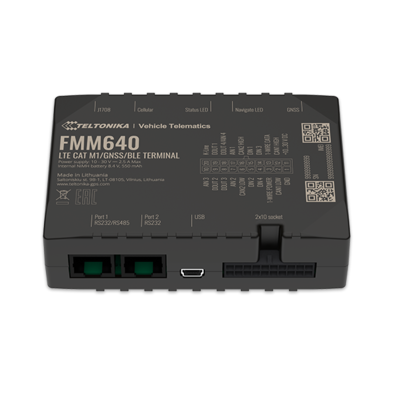

Teltonika FMM640

Heavy transport tracking device on 4G networks

Teltonika FMM640
Teltonika FMM640
Teltonika FMM640
Teltonika FMM640
Teltonika FMM640
  • Free worldwide shipping
  • No contracts
  • 2 years warranty
Teltonika FMM640 $149
Quantity - +
Total: $

Description

Teltonika FMM640 is PROFESSIONAL worldwide tracker with LTE CAT M1, NB IoT connectivity, that makes this device usable with newest and most cost efficient technologies. FMM640 features like FMS CAN data (J1939), fuel CAN data (J1708), tachograph live data (K-line), remote tachograph file download, various third party RS232 or RS485 devices support and Dual-SIM will maximize your fleet efficiency. Terminal is suitable for applications like international logistics, refrigerated transport, agriculture, construction & mining, security & emergency services and even more.

Specification

MODULE
Name Quectel BG96
Technology LTE(CAT M1)/2G(GSM/GPRS)/GNSS
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver Tracking: 33 channel
Tracking sensitivity -165 dBM
Accuracy < 3 m
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
CELLULAR
Technology LTE CAT M1/CAT NB1/EGPRS
2G bands Quad-band 800/850/900/1900 MHz
4G bands LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28
LTE TDD: B39 (for CAT M1 only)
Data transfer LTE FDD: Max. 375Kbps (DL)/Max.375Kbps (UL)
LTE TDD: Max. 32Kbps (DL)/Max. 70Kbps (UL)
GPRS: Max. 107Kbps (DL)/Max. 85.6Kbps (UL)
Data support SMS (text/data)
POWER
Input voltage range 10 - 30 V DC with overvoltage protection
Internal Back-up battery 550 mAh Ni-Mh, 8,4 V battery
PHYSICAL SPECIFICATION
Dimensions 104,1 x 76,8 x 31,5 mm (L x W x H)
Weight 197 g
OPERATING ENVIRONMENT
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
INTERFACE
Digital Inputs 4
Digital Outputs 4
Analog Inputs 4
1-Wire interface 1
RS232 2
RS485 1
CAN J1939 2
J1708 1
K-line 1
GNSS antenna External High Gain
Cellular antenna External High Gain
USB 2.0 Mini-USB
LED indication 2 status LED lights
SIM 2x SIM Card (Dual-SIM)
Memory 2MB internal flash memory and external Micro SD card up to 32 GB
FEATURES
Movement detection Accelerometer
Scenarios Green/Eco Driving, Over Speeding detection, Excessive Idling detection, Towing detection, Crash detection, Immobilizer, iButton Read Notification
Functionalities Auto Geofencing, Manual Geofencing, Trip detection, Odometer, Fuel counter, GNSS Unplug Detection, DDD download and Tacho online data, Offline tracking
Supported peripherals Garmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, LV-CAN200, ALL-CAN300, CAN-CONTROL, CAN FMS (J1939, J1708), K-line data, Continental tire pressure measurement sensor, Iridium SBD (TSM232), Carrier freezer, Log Mode, NMEA, TCP ASCII/Binary
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GNSS, NITZ, NTP
Fuel monitoring LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, ALL-CAN300, CAN-CONTROL, CAN FMS, Ultrasonic level sensor
Ignition detection Digital Input, Accelerometer, External Power Voltage

Use cases

International Logistics

Modern day logistics require a lot of information for business optimization, it is not enough to get current GPS coordinate of your vehicle location. With fuel consumption, driven distance and many other parameters you are able to monitor and regulate your fleet resources, this way all expenses would be accounted. With solution for driver activities monitoring you will have full control of your driver.

Security & emergency services

Concept of public security has changed significantly in the past decade. Safety of our society depends on technology which allows us to monitor, track and respond to emergency calls faster than ever. With our solution you will always know current location and status of your transport, thus ensuring quick response time to any kind of situation.

Construction & mining

Probably most important aspect of construction machinery management is fuel consumption data. Powerful cranes and high capacity concrete mixers compared to light vehicles, use huge amounts of fuel during short periods of time – high chance of fuel theft if work time is accounted only on paper. Take full control of your fleet, workers and resources.

Public transport

Public transport requires a lot of management. It is always important to know where vehicles are, how long they drive and rest – all this to achieve best efficiency. With fuel data and other various parameters you are able to monitor and control your fleet resources, thus cutting expenses to minimum. With solution for driver or even passenger monitoring you will have full information about people who were using your transport.

Agriculture

Agricultural machinery has advanced a lot in recent years, technology like modern tractors or harvesters usually costs more than a sports car – it is essential to keep track of such valuable assets. With our solution you will have full control of current position, driver activities and receive various information from harvesting machinery.
